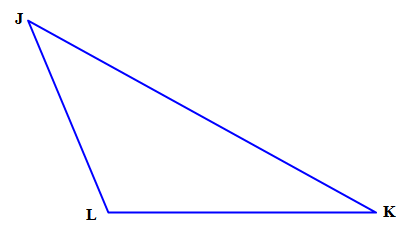

Activity: Print out Triangle JKL. Use a compass and straightedge to construct congruent triangle FGH applying the SSS postulate. Follow the steps outlined in the unit link to “Side-Side-Side Postulate (SSS)”. |
|
|
| |
3) In the previous activity, throughout the construction you made congruent line segments. How did you use the compass to measure the length of the line segments? |
|
4000 character(s) left Your answer is too long. |
|
|
Attachments |
|

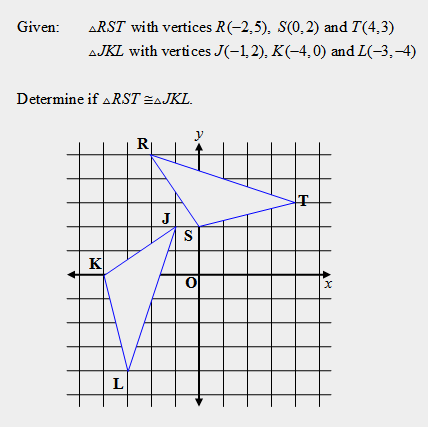

4) Based on the given information, the figure below, and the use of the distance formula; answer the following questions: (a) What are the lengths of each side of triangle RST? (b) What are the lengths of each side of triangle JKL? (c) Are triangles RST and JKL congruent? |
|
4000 character(s) left Your answer is too long. |
|
| |
|
| |
5) In a triangle, what is an included angle? |
|
4000 character(s) left Your answer is too long. |
|
|
Attachments |
|
| |
|
| |
|
Activity: Print out Triangle PQR. Use a compass and straightedge to construct congruent triangle XYZ applying the SAS postulate. |
|
|
| |
8) In the previous construction, explain how you constructed the included angle. |
|
4000 character(s) left Your answer is too long. |
|
|
Attachments |
|

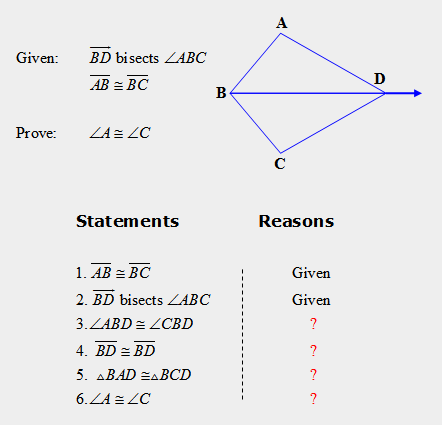

9) Copy or print out the partial proof of the given information and the figure shown below. Complete the proof, and then state each number of the missing reason and the corresponding answer. |
|
4000 character(s) left Your answer is too long. |
|
| |
|
| |
10) In a triangle, what is an included side? |
|
4000 character(s) left Your answer is too long. |
|
|
Attachments |
|
| |
|
| |
|
| |
|
14) Copy or print out the partial proof of the given information and the figure shown below. Complete the proof, and then state each number of the missing statement or reason and the corresponding answer. |
|
4000 character(s) left Your answer is too long. |
|
| |
|
| |
| |
|
| |
|
17) Refer to the figure below and write a paragraph proof to prove that segments PR and QS are congruent. |
|
4000 character(s) left Your answer is too long. |
|
|
Attachments |
|
Isosceles and Equilateral Triangles |
|
|
| |
18) Answer the following questions about the information and figure shown below: (a) Name the vertex angle. (b) Name the two base angles. (c) Name the base. (d) Name the legs. |
|
4000 character(s) left Your answer is too long. |
|
| |
|

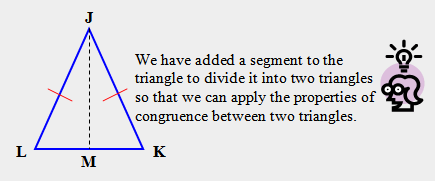

Refer to the Isosceles Triangle Theorem and the figure below to answer the next six questions. We will use some creative thinking to prove this theorem. |
|
|
| |
| |
|
| |
|
| |
|
| |
|
23) Finally, you can say that angle L is congruent to angle K because of what definition? |
|
4000 character(s) left Your answer is too long. |
|
| |
|
24) In the previous proof, segment JM is called an “auxiliary line segment”. Write a definition of an “auxiliary line segment”. |
|
4000 character(s) left Your answer is too long. |
|
|
Attachments |
|
| |
|
| |
|
| |
|

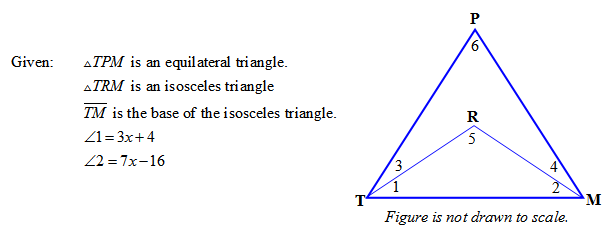

Refer to the figure below to answer the next three questions. |
|
|
| |
28) Answer the following questions: (a) What is the value of “x”? (b) What is the value of angle 1? (c) What is the value of angle 3? |
|
4000 character(s) left Your answer is too long. |
|
| |
|
29) Answer the following questions: (a) What is the value of angle 2? (b) What is the value of angle 4? |
|
4000 character(s) left Your answer is too long. |
|
| |
|
| |
|
| |

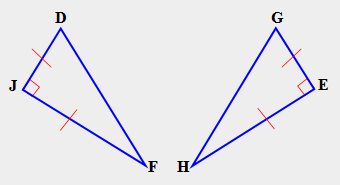

31) Which postulate or theorem could be used to deduce that the two triangles are congruent? |
|
|
|
| |
|
32) Which postulate or theorem could be used to deduce that the two triangles are congruent? |
|
|
|
| |
|
33) Which postulate or theorem could be used to deduce that the two triangles are congruent? |
|
|
|
| |
|
Extra Credit: Check with your instructor to see if he/she is interested in awarding extra credit to you for developing a two-column proof (with statements and reasons) to prove that triangle DAP is congruent to triangle LAN. Refer to the information and figure given below. Submit a word-processing document to your instructor via VLA email. |
|
|
| |
Extended Research: Check with your instructor to see if he/she is interested in awarding extra credit to you for writing a one-page report on the following research topic: A triangle is a rigid fixture used in constructing buildings, bridges, and other large structures. It is frequently used to reinforce frameworks. Look around your home and/or the Internet to find three instances of a triangle used to firm up a structure. Submit a document to your instructor either describing the three instances of a triangle in use or showing it in use through a picture or diagram. |
|
|
| |
34) If you were directed by your school to complete Offline Activities for this course, please enter the information on the Log Entry form. |
|
No offline activities found |
